• Barco MDSC-2326

Full HD surgical display

  • For the best hand-eye coordination
  • Allows for easy cleaning and disinfection
  • Works with Nexxis for video-over-IP integration

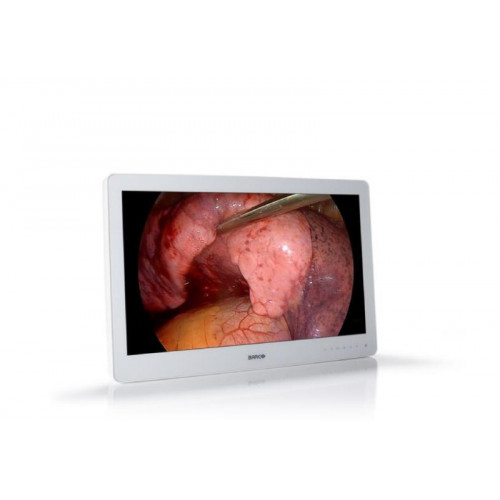

Barco’s MDSC-2326 is a 26-inch, near-patient surgical display with LED backlight. Next to the renowned image quality of the MDSC-2226, the new scratch-resistant, high quality optical glass offers durable protection throughout the display's lifetime.

Ease of mind

Calibrated, artifact-free images

The display’s stabilized brightness, high contrast and calibrated colors provide surgeons with excellent depth perception and the most accurate images from FHD endoscopy camera systems.

Multi-source, multi-display imaging

With its broad input connectivity, the MDSC-2326 offers flexible multi-modality imaging (PiP & PaP) in new integrated operating rooms. Featuring an integrated Barco Nexxis decoder (optional) it offers the most convenient visualization solution for uncompressed video-over-IP without delay.

Safety, stability and redundancy

Thanks to its LED backlight with light output stabilization, the display ensures lifetime-long performances and image consistency. It also offers a unique, automated failover feature so a backup signal is always available to ensure safe surgery

Ease of installation

The MDSC-2326 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms.

Ease of use

Barco’s MDSC-2326 allows for easy cleaning and disinfection thanks to its smooth surface, splash-proof housing (front protection level IP45). It comes with a highly durable, scratch-resistant front glass featuring excellent optical performance.


Barco's MDSC-2326 features:

  • 26” wide-screen LCD
  • Full HD resolution (1,920 x 1,080)
  • High-bright LED backlight with output stabilization
  • Wide viewing angle thanks to IPS-Pro LCD technology
  • 10-bit image processing
  • Artifact-free images
  • Calibrated, consistent colors and grayscales
  • Easy-clean design with sealed front (IPX5)
  • Smart cable management system

Thumb File information
MDSC-2326.pdf 394.97KB 406
Screen size 576 x 324 mm (22.7” x 12.8")
Size 661 mm (26")
Resolution 2MP (1920 x 1080)
Brightness cd/m2 Max: 500 cd/m² (typ.) @6500K : 400 cd/m2 stabilized (typ.) X-ray setting: 400 cd/m2 stabilized (typ.)
Contrast 1400:1 (Typ.)
Response time T on + T off = 18 msec (typ.)
Viewing angles 178° Hor / 178° Ver
Color depth 1,073 million (10 bit)
Backlight LED backlight
Panel type TFT AM LCD / IPS-PRO technology
Connections See PDF Specification
Power supply See PDF Specification
Power consumption See PDF Specification
Net. weight (excl. base unit) See PDF Specification
Measurements (excl. base unit) 640 x 419 x 87 mm (25.2 x 16.5 x 3.4”)
Product color
Screen Protection IP21 (IP45 front side)
VESA mount 100 x 100 mm VESA
Certification IEC60601 3rd Ed.; amend. 1 Approvals/Marking: CE, C-UL-US, DEMKO, CCC, INMETRO, EAC Safety (Medical equipment): EN60601-1, UL60601-1, CAN/CSA C22.2 No. 60601-1-08 Electromagnetic compatibility: EMC Medical standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class B (MDSC-2326 DDI), Class A (MDSC-2326 MNA)

Barco MDSC-2326

  • Brand: Barco
  • Product Code: MLBK9307951
  • Request Quote

Tags: monitor, medical, 26", surgical, endoscopy, video
