32-inch full HD surgical display
- For the best hand-eye coordination
- Allows for easy cleaning and disinfection
- Works with Nexxis for video-over-IP integration

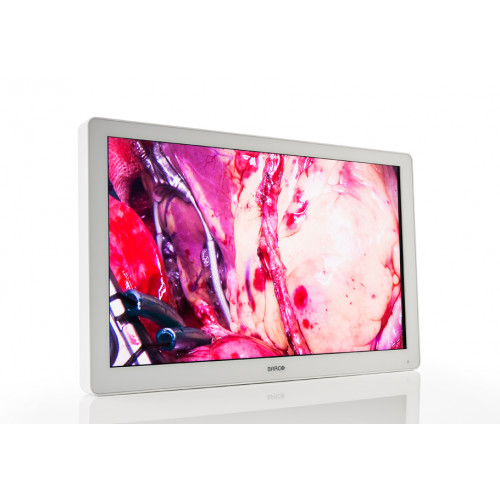

Barco’s MDSC-2232 is a 32" near-patient surgical display with Full HD resolution. Purpose-built for the operating room, emergency room, and pre-operative areas, it offers an easy-clean design, smart mechanics and the most detailed images in the procedure room today.
Perfect image reproduction
The display’s high brightness, high contrast and full HD resolution provide surgeons with excellent depth perception and precise color and monochrome images. It presents images with unrivaled color and grayscale accuracy and with near-zero latency for perfect hand-eye coordination. Thanks to its high-bright LED backlight with light output stabilization, the surgical display also ensures a long lifetime and image consistency across displays.
Multi-source, multi-display imaging
With its broad input connectivity, the MDSC-2232 offers flexible multi-modality imaging (PiP & PaP) in new integrated operating rooms.The 32-inch display also offers integrated functionality (optional) for use with Barco’s Nexxis for OR solution, ensuring smooth distribution of uncompressed video and data over the IP network without delay.
Easy to install
The MDSC-2232 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms. Available in two models, this surgical display also features a host of connectivity and remote control options.
Safe for medical use
Barco’s
MDSC-2232 allows for easy cleaning and disinfection thanks to its
smooth surface and splash-proof housing (front protection level IPX5).
The multi-coated glass is highly durable, scratch-resistant, and
protects the LCD panel from physical damage. The fanless design avoids
the spread of contaminants. What's more, the display offers a unique,
automated failover feature so a backup signal is always available to
ensure safe surgery.
| Thumb | File information |
 |
MDSC-2232.pdf File Size713.6KB Downloaded: 296 |
| Monitor | |
| Screen size | 698 x 393 mm |
| Size | 31.55” |
| Resolution | 2MP (1920 x 1080) |
| Brightness cd/m2 | 450 cd/m² |
| Contrast | 1300:1 |
| Response time | 25 ms |
| Viewing angles | 178/178 |
| Color depth | 16.7 million (8-bit) |
| Backlight | LED |
| Panel type | S-IPS |
| Connections | Please see specification (download) |
| Power supply | External power supply |
| Power consumption | Please see specification (download) |
| Net. weight (excl. base unit) | Please see specification (download) |
| Measurements (excl. base unit) | 777 x 472 x 92 mm |
| Product color | White |
| Screen Protection | Double side anti-reflective tempered glass |
| VESA mount | 100 x 100 mm, 200 x 100 mm |
| Certification | IEC 60601-1: 2012 Edition 3.1 (Medical electrical equipment – Part 1: General requirements for basic safety and essential performance) EN 60601-1: 2006 +A1:2013 (Medical electrical equipment”. Part 1: General requirements basic safety and essential performance) ANSI/AAMI ES 60601-1: 2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012 - Med. El. Equip., Part 1: general req. for basic safety and essential performance. CAN/CSA-C22.2 No. 60601-1: 14 Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance (Harmonized with Ed. 3.1) Approvals/Marking: CE c-UL-us, DEMKO, PSE, KCC (CCC certification is pending), Note: PSE is available on PSU Electromagnetic Compatibility: EMC Medical EMC Standards: IEC60601-1-2, EN55011/CISPR 11 Class BB), FCC CFR47 part 15 & 18 Class B RoHS-2, REACH, WEEE compliant IP20 (IP45 monitor front side only) |
