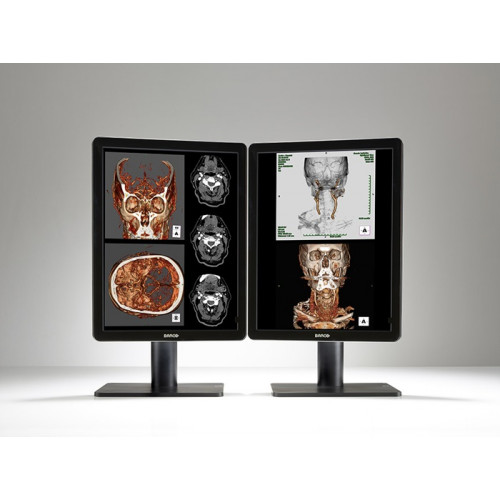

2MP high-bright color display system

Nio Color 2MP LED is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.

Confident color reading

Equipped with high-bright LED backlights, Nio Color 2MP LED delivers excellent brightness and more shades of gray to detect subtle details more quickly. The unique front-of-screen sensor ensures you see consistent and precise images at all times for confident diagnoses.

On-demand image quality checks

The front-of-screen sensor on Nio Color 2MP LED, which works seamlessly with Barco's online MediCal QAWeb solution for automated Quality Assurance and on-demand calibration, makes sure you are viewing perfect DICOM images.

An excellent investment

The Nio Color 2MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which impacts maintenance and operational costs. Additionally, the LED backlights offer a long lifetime - even at high brightness - providing an excellent return on your investment.


  • High-bright and power-efficient LED backlights
  • Accurate grayscale and color rendering
  • Front sensor and MediCal QAWeb for easy DICOM conformance
  • High-performance 3D rendering with full 3D, OpenGL and DirectX support
Thumb File information
barco_spec/mdnc/Nio-Color-2MP-LED-MDNC-2221.pdf 508.84KB 6489
Screen size 432 x 324 mm
Size 21.3"
Resolution 2MP (1600 x 1200)
Brightness cd/m2 800 cd/m²
Contrast 1400:1
Response time 20 ms
Viewing angles 178 / 178
Color depth
Backlight LED
Panel type TFT AM Color LCD IPS
Connections DVI-D Dual Link, DisplayPort, USB: 1 upstream (endpoint), 2 downstream
Power supply
Power consumption 36W
Video functions
Pivot Yes, if the graphics card supports it.
Luminance control Uniform Luminance Technology (ULT), Backlight Output Stabilization (BLOS)
Internal DICOM LUT, pre-loaded Yes
Internal LUT for Calibration

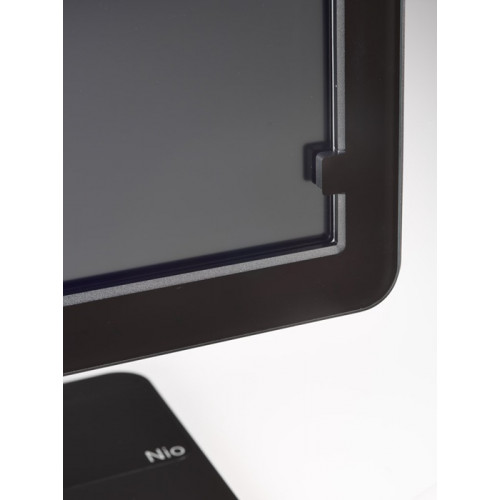

Sensors Front sensor
Net. weight (excl. base unit)
Net. weight (incl. base unit) 12.6 kg
Measurements (excl. base unit) 491x378x84mm
Measurements (incl. base unit) 491x472~572x235mm
Base unit
Product color
Screen Protection Protective, non-reflective glass cover
Kensington lock
VESA mount 100 mm
Certification CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC pending, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS

Barco Nio Color 2MP (MDNC-2221)

  • Brand: Barco
  • Product Code: MLBK9601788
  • Request Quote

Tags: monitor, display, review, dicom, x-ray
