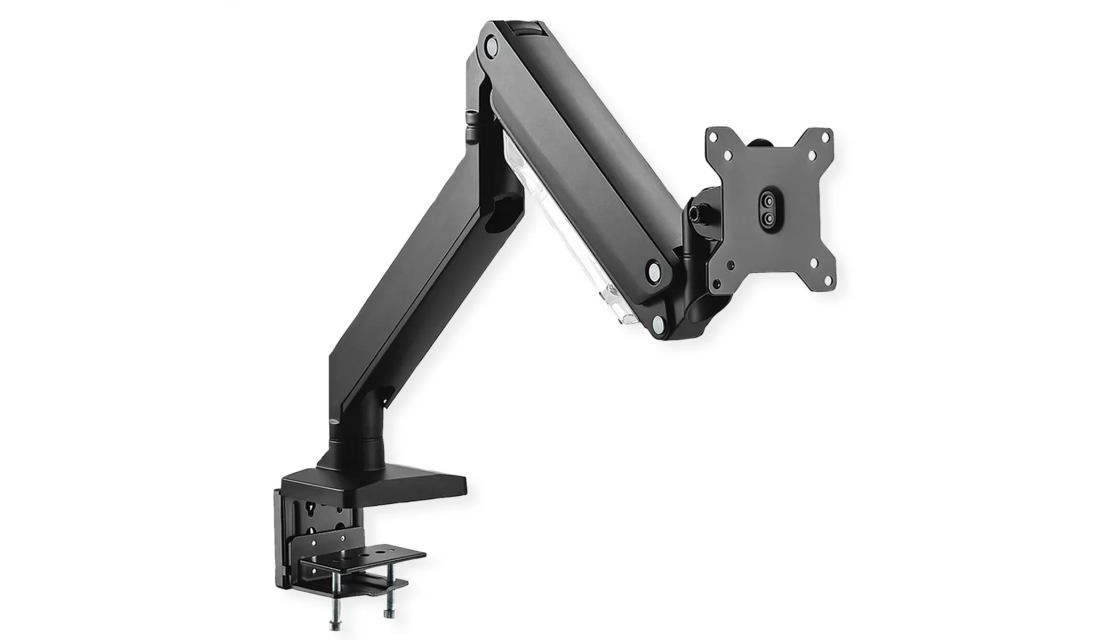

LCD monitor arm for easy and reliable adjustment of a monitor with screen sizes of 17" (43.18 cm) to 49" (124.46 cm), weighing up to 18 kg (flat) and up to 14 kg (curved) and VESA 75/100!
- Suitable for Screen Sizes of 17" (43.18 cm) to 49" (124.46 cm)
- Meets VESA 75 (75x75 mm) or VESA 100 (100x100 mm)
- Suitable for flat and curved monitors
- Delicate and streamlined design
- Made of high quality aluminum alloy

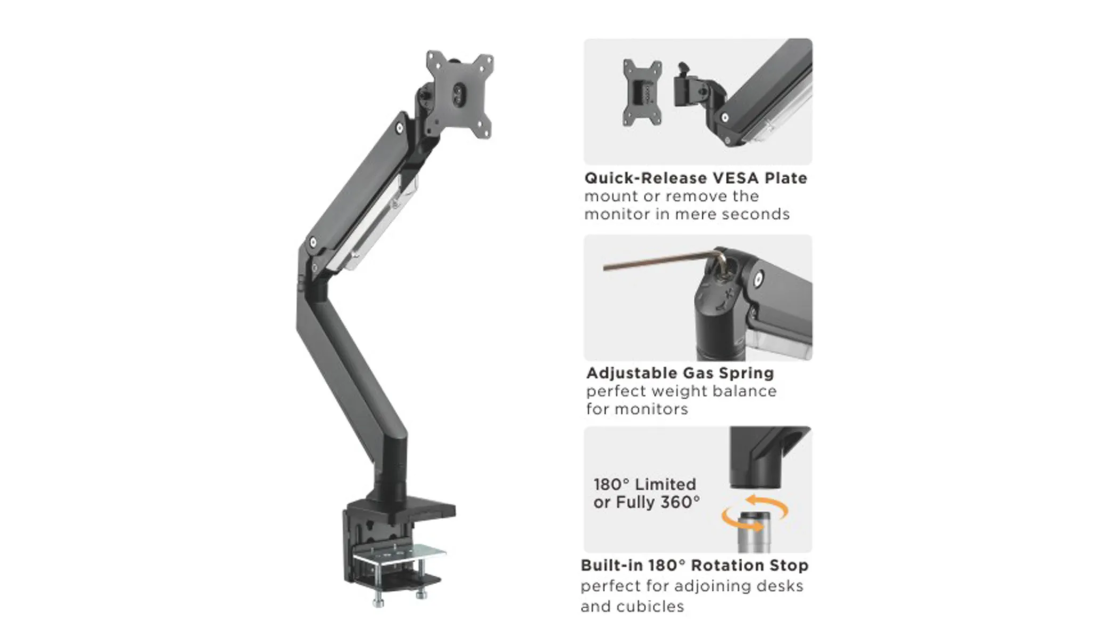

- Gas spring integrated allows users to move the LCD panel in most positions at will
- Special feature: Pivot function - screen is 90 degrees rotatable
- Small desktop mount saves space

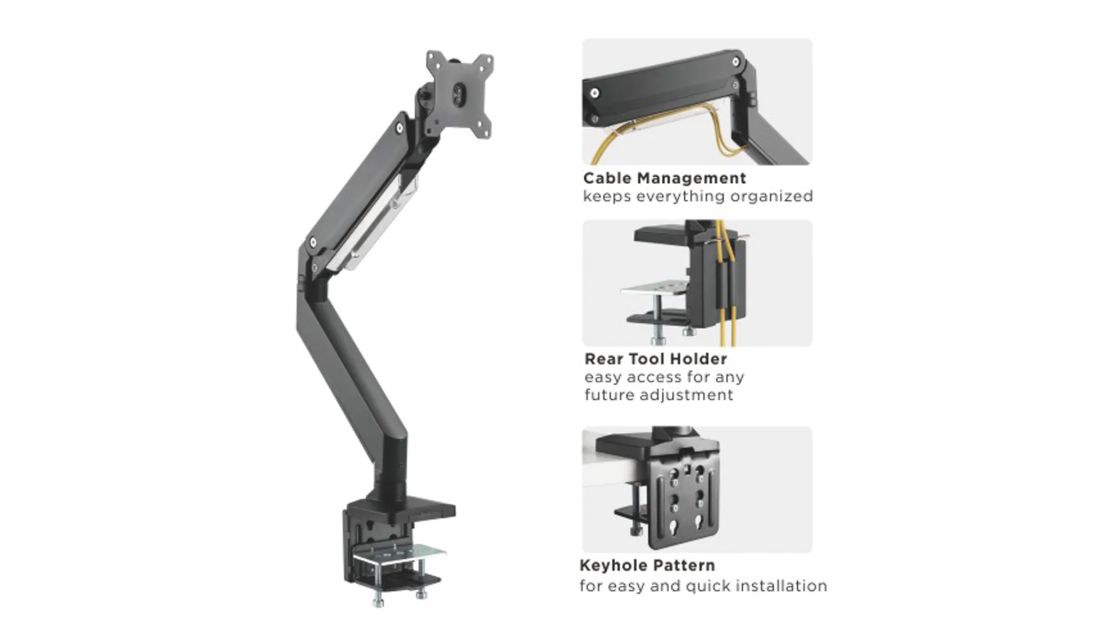

- A clever cable management is built into the rear arm

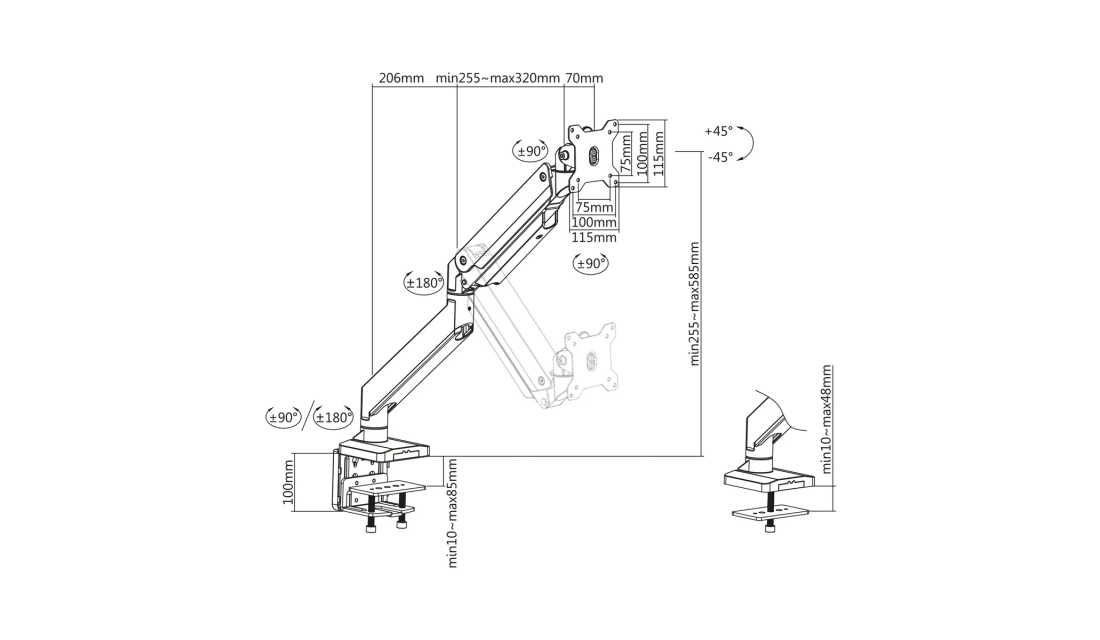

Specifications
- Arm extension: ~ 526mm
- Monitor pivot: 180°
- Rotation: 180° (arm & display)
- Loading capacity: flat <= 18 kg, curved <= 14 kg
Specifications
- Product type
- Monitor Arms, Desk Clamp
- Colour
- black
- Scope of delivery
- Monitor Arm, User Manual
- Maximum weight capacity
- 18 kg
- Quantity of pivots
- 5
- Fixing
- Desk clamp
- Maximal arm length
- 526mm
- Adjustments
- Gas spring
- Inclinable
- yes
- Height adjustable
- yes
- Rotatable
- yes
- Number of monitors
- 1
| Monitor arm | |
| Extension | |
| Lift | |
| Max weight | |
| Pivot | |
| Rotation | |
| Tilt | |
| VESA | |
ROLINE Monitor arm for desk, Pneumatic, Desk Clamp, up to 18kg.
- Brand: Roline
- Product Code: RO17031116
-
