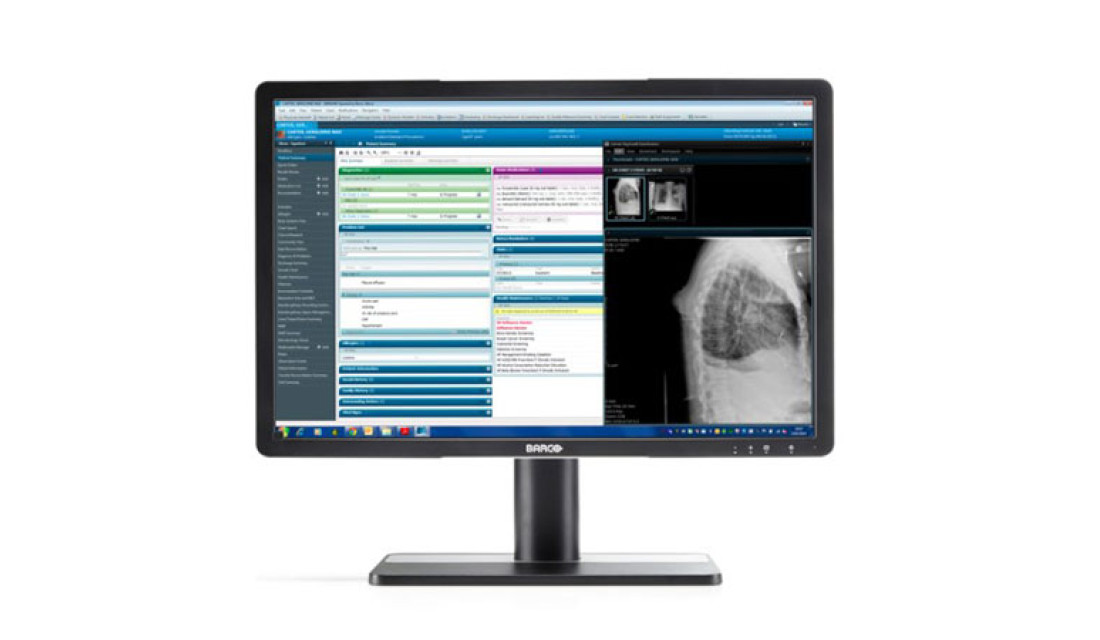

22" clinical display for hospital-wide viewing of clinical data and images
- 22" display for reviewing clinical images
- With front sensor for consistent images
- With remote QA management tools
Eonis® is a 22" display built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.
High image quality
Eonis presents sharp, bright images. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Centralized quality assurance
Eonis displays come with Barco’s cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Smart design, fit for purpose
Barco’s Eonis
display features multiple mounting options and connections. The
user-friendly height, tilt and pivot adjustments of the base allow the
monitor to be positioned for maximum comfort to help ease the physical
strains of a long work day.
| Thumb | File information |
 |
Eonis_22_(MDRC-2222_Option_BL).pdf File Size556.63KB Downloaded: 16107 |
| Monitor | |
| Screen size | 476 x 268 mm (18.7 x 10.5") |
| Size | 546 mm (21.5") |
| Resolution | 2MP (1920 x 1080 pixels) |
| Brightness cd/m2 | 300 cd/m² |
| Contrast | 1000:1 |
| Response time | 7.5 ms |
| Viewing angles | 178° |
| Color depth | |
| Backlight | |
| Panel type | LCD |
| Connections | 1x DVI-I 1x DisplayPort 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
| Power supply | 100-240 Vac, 50-60 Hz, 0.6-0.4 A |
| Power consumption | 20 W (nominal) < 0.5 W (hibernate) < 0.5 W (standby) |
| Net. weight (excl. base unit) | 3.3 kg |
| Net. weight (incl. base unit) | 5.6 kg |
| Measurements (excl. base unit) | Portrait: 315 x 514 x 67 mm Landscape: 514 x 315 x 67 mm |
| Measurements (incl. base unit) | Portrait: 337 x 525~602 x 201 mm Landscape: 514 x 388~498 x 201 mm |
| Product color | |
| Screen Protection | N/A |
| VESA mount | VESA (100 mm) |
| Certification | FDA listing R015753 for General Radiology CE (MDD 93/42/EEC; A1:2007/47/EC class I product) CCC (China), Inmetro (Brazil), BIS (India) Safety specific: IEC 60950-1:2005 + A1:2009 + A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1: A1:2012 +C1:2009/(R)2012 +A2:2010/(R)2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed.4) EN 60601-1-2: 2015 (ed.4) FCC part 15 Class B ICES-003 Level B VCCI (Japan) Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
