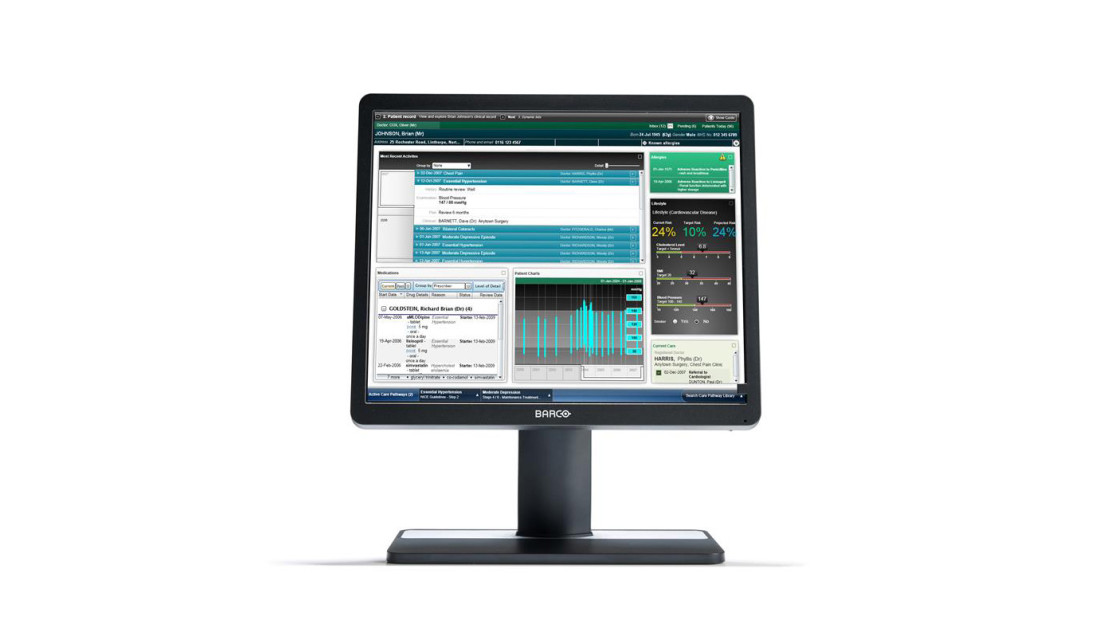

19" clinical display for hospital-wide viewing of clinical data and images
- Fit for clinical use
- Automated Quality Assurance and calibration
- Front consistency sensor technology
The Barco MDRC-1219 brings reliable, DICOM compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance. A touchscreen version is also available.
Consistent images, easy collaboration
The high-quality display presents sharp, bright images with high contrast. The unique front consistency sensor automatically aligns the image quality every time the display is switched on, ensuring fast power-up and continuous luminance stability.
Result? Consistent images that make collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Quality assured, automatically
The MDRC-1219 comes with Barco’s cloud-based MediCal QAWeb software, an online service for calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Fit for clinical use
The
unique 5:4 aspect ratio is ideal for viewing all types of applications
and images from medical modalities. Like every Barco clinical display,
the MDRC-1219 complies with international medical and patient safety
standards.
Thumb | File information |
barco_spec/mdrc/Barco_MDRC-1219.pdf File Size397.46KB Downloaded: 646 |
Monitor | |
Screen size | 376 x 301 mm (14.81 x 11.85") |
Size | 482 mm (19.0") |
Resolution | 1MP (1280 x 1024 pixels) |
Brightness cd/m2 | 330 cd/m² |
Contrast | 1000:1 |
Response time | 30 ms |
Viewing angles | 178° |
Color depth | |
Backlight | |
Panel type | IPS-TFT Color LCD |
Connections | DVI (DVI-D and DVI-A) DisplayPort 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
Power supply | Internal power supply (100-240 Vac, 50-60 Hz) |
Power consumption | 22 W (nominal) < 0.5 W (standby) |
Net. weight (excl. base unit) | 3.1 kg |
Net. weight (incl. base unit) | 5.3 kg |
Measurements (excl. base unit) | 411 x 348 x 67 mm |
Measurements (incl. base unit) | Portrait: 348 x 440~550 x 201 mm Landscape: 411 x 408~518 x 201 mm |
Product color | |
Screen Protection | |
VESA mount | VESA (100 mm) |
Certification | CE (MDD 93/42/EEC; A1:2007/47/EC class I product) EN 60601-1:2006 +A11:2011 +A1:2013 +A12:2014 IEC 60601-1 (ed. 3);am1 ANSI/AAMI ES60601-1: 2005/(R)2012 CSA CAN/CSA-C22.2 No. 60601-1:14 IEC 60529:1991 + A1: 2000 (Degrees of protection IP code) IEC 60601-1-2: 2014 FCC class B ICES-001 Level B CCC- GB9254-2008 + GB4943.1-2011 + GB17625.1-2012 VCCI KC |
