Your perfect fit for radiology diagnostic reading and clinical collaboration at home, in the hospital, anywhere
- Large 32” display
- 8MP screen resolution
- Integrated multimedia functionalities
- One display for multiple workstations
- Automated, remote QA and compliance
- Pathology setting for accurate representation of whole slide images

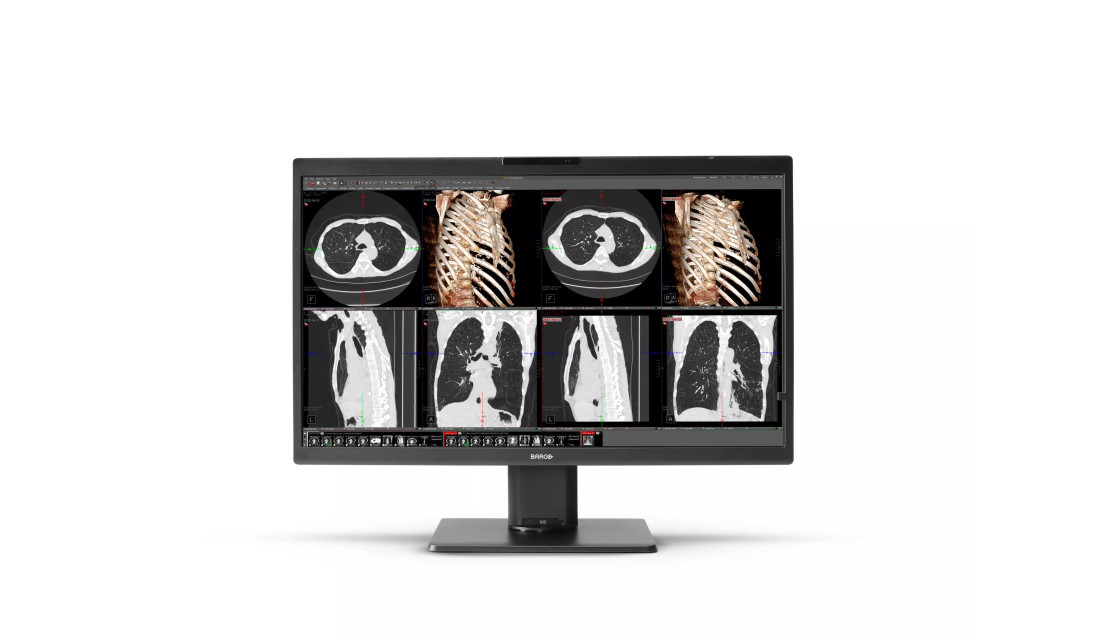

Barco's Nio Color 8MP display is the ideal choice for radiology image interpretation in various settings. It seamlessly merges our acclaimed image quality and detail with built-in features that make collaboration with peers – from any location – easy and clutter-free.
Excellent 8MP image quality on a large 32” screen
Whether you're working in an office, at home, or any other location, a solid setup is crucial. With its remarkable 8MP resolution and generous 32” screen, Nio Color 8MP empowers you to combine the information and images you need on a single screen.
The monitor includes our Intuitive Workflow Tools and cutting-edge technologies:
- SteadyGray for precise and consistent representation of grays
- SteadyColor for accurate and consistent representation of colors
- I-Guard for stable performance across the display’s full lifetime
- Uniform Luminance Technology for screen-wide uniformity correction
- Ambient Light Compensation for optimal viewing in various lighting conditions
- RapidFrame for sharp and fast image rendering when scrolling through cine images
Your perfect fit for reading radiology images, anywhere
In addition to the Nio Color 8MP’s exceptional core features, you also get:
- Integrated camera, speaker, and microphone
- Our advanced screensharing tool Multi-Display Confer, for smooth virtual collaboration
- KVM functionality for effortless switching between multiple workstations
- Daisy chaining to keep your desk free of cable clutter
Stable performance, remotely managed
Enjoy automated QA and compliance for a stable performance anywhere, during the full lifetime of your monitor, thanks to QAWeb Enterprise. Finally, Barco’s all-inclusive warranty assures you a full return on investment over at least 5 to 7 years of your display.
| Thumb | File information |
 |
Nio-Color-8MP-MDNC-8132-Specification.pdf File Size290.6KB Downloaded: 204 |
| Panel | |
| Aspect Ratio | 16:9 |
| Color Depth | 30 bit |
| Luminance | 850 cd/m² |
| Resolution | 8MP (3840 x 2160 pixels @ 60 Hz) |
| Response Time, ms | 12.7 ms ((Tr + Tf)/2) (typical) |
| Screen Size, Diagonal | 812.80 mm (32.0") |
| Screen Technology | IPS |
| Viewing Angles | 178° |
| Display Modes | |
| Calibration | Yes |
| DICOM | Yes, 420 cd/m² |
| Sensors | |
| Ambient Light Sensor | Yes |
| Front Sensor | Yes, I-Guard |
| Presence Sensor | Yes |
| Video Inputs | |
| DisplayPort | 2x DisplayPort |
| USB | |
| USB Downstream | 5x USB-A 2.0 downstream (of which 1 charge port) |
| USB Upstream | 2x USB-B 2.0 upstream (endpoint) |
| Power | |
| Power Adapter Input Rating | 100-240 Vac, 50-60 Hz, 2.5-0.9 A |
| Power Adapter Output Rating | 24 Vdc, 8.3 A |
| Power consumption | 60 W (nominal) < 0.35 W (hibernate) < 0.35 W (switched off) |
| Mechanical | |
| Dimensions with Base Unit | 743 x 518~618 x 238 mm |
| Dimensions without Base Unit | 743 x 459 x 63 mm |
| Mounting Standard, VESA | VESA (100 mm) |
| Weight with Base Unit | 13 kg |
| Weight without Base Unit | 8.4 kg |
| Compliance | |
| EU | ALL PENDING CE0123 (Medical Device) FDA 510(k) Kxxxxx CCC (China), KC (Korea), BSMI (Taiwan), INMETRO (Brazil), BIS (India), EAC (Russia) Safety specific: IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 62368-1:2018 EN IEC 62368-1:2020 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific (on-going): IEC 60601-1-2:2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-001 Level B VCCI (Japan) Environmental (on-going): China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
